fail2ban-dashboard

Straight from the source, not from the logs

fail2ban-dashboard connects to the same Unix socket that fail2ban-client uses and asks the fail2ban server directly.

fail2ban server Jails & bans

fail2ban.sock Unix socket · read-only

fail2ban-dashboard

HTTP

you Browser & Prometheus

Log parsing

Needs read access to log files and knowledge of where they live
Breaks when log formats, rotation or verbosity change
Reconstructs state from history and can drift from reality
Misses unbans and manual changes made with fail2ban-client

Socket (fail2ban-dashboard)

Asks fail2ban for its live state: jails, current and total bans and failures
Independent of log paths, formats and rotation
Speaks the fail2ban protocol natively in Go, so no Python and no fail2ban-client binary are needed
Only needs the socket, which mounts read-only into Docker

What it does

Everything you need to keep an eye on fail2ban, nothing you don't.

Live jail overview

Every jail with current and total banned and failed counts, read live from fail2ban and refreshed automatically.

GeoIP lookup

See where banned addresses come from. GeoIP data is downloaded and cached locally.

Prometheus metrics

Optional /metrics endpoint with per-jail gauges, ready for Grafana.

Authentication

Protect the dashboard with basic auth or log in through any OAuth2 / OIDC provider.

Single binary & Docker

Static Go binary for amd64 and arm64, or a distroless container image on GHCR.

Light & dark

A clean interface that follows your system theme, behind a reverse proxy or not.

Screenshots

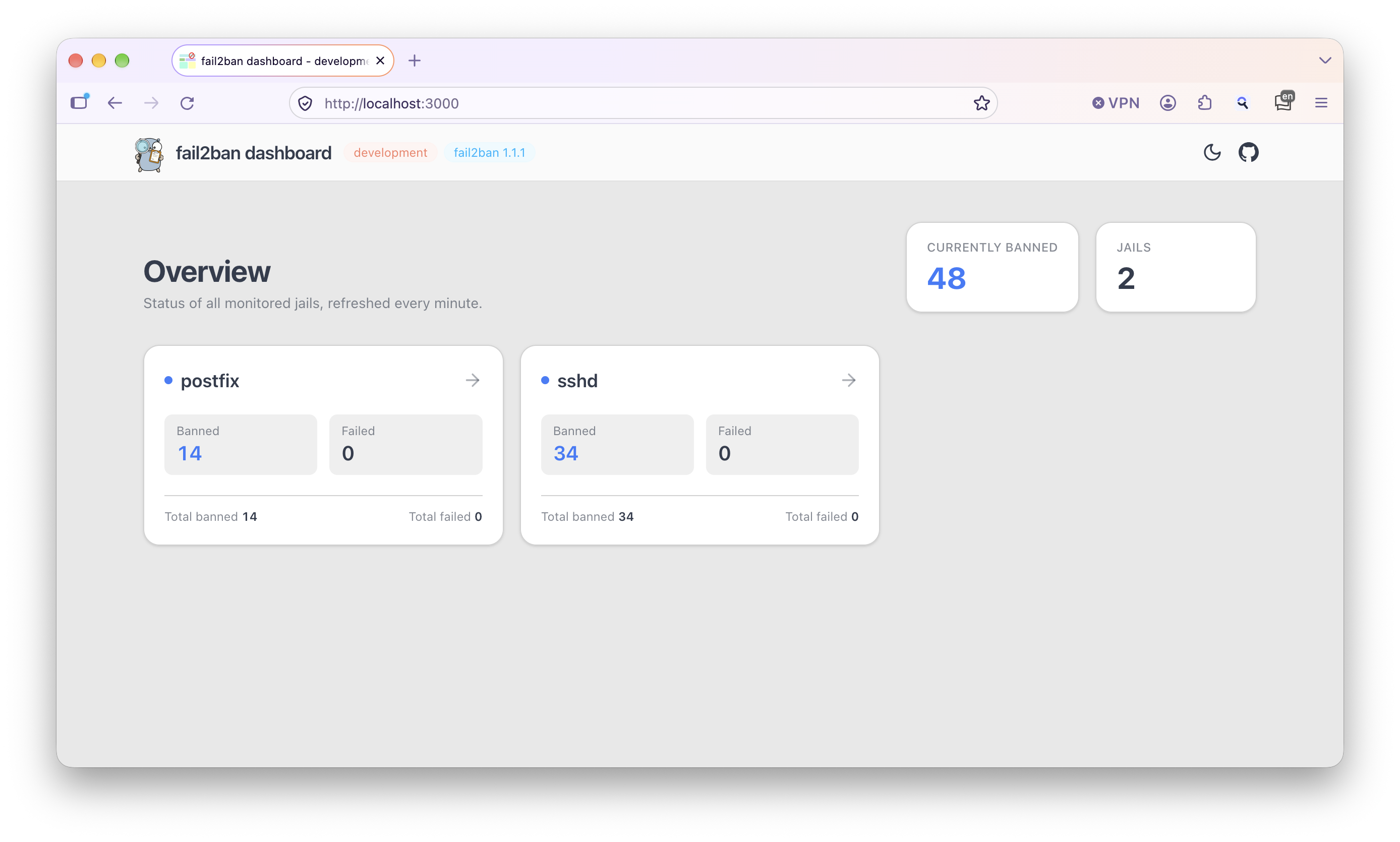

Dashboard overview listing jails with banned and failed counts — Overview of all jails

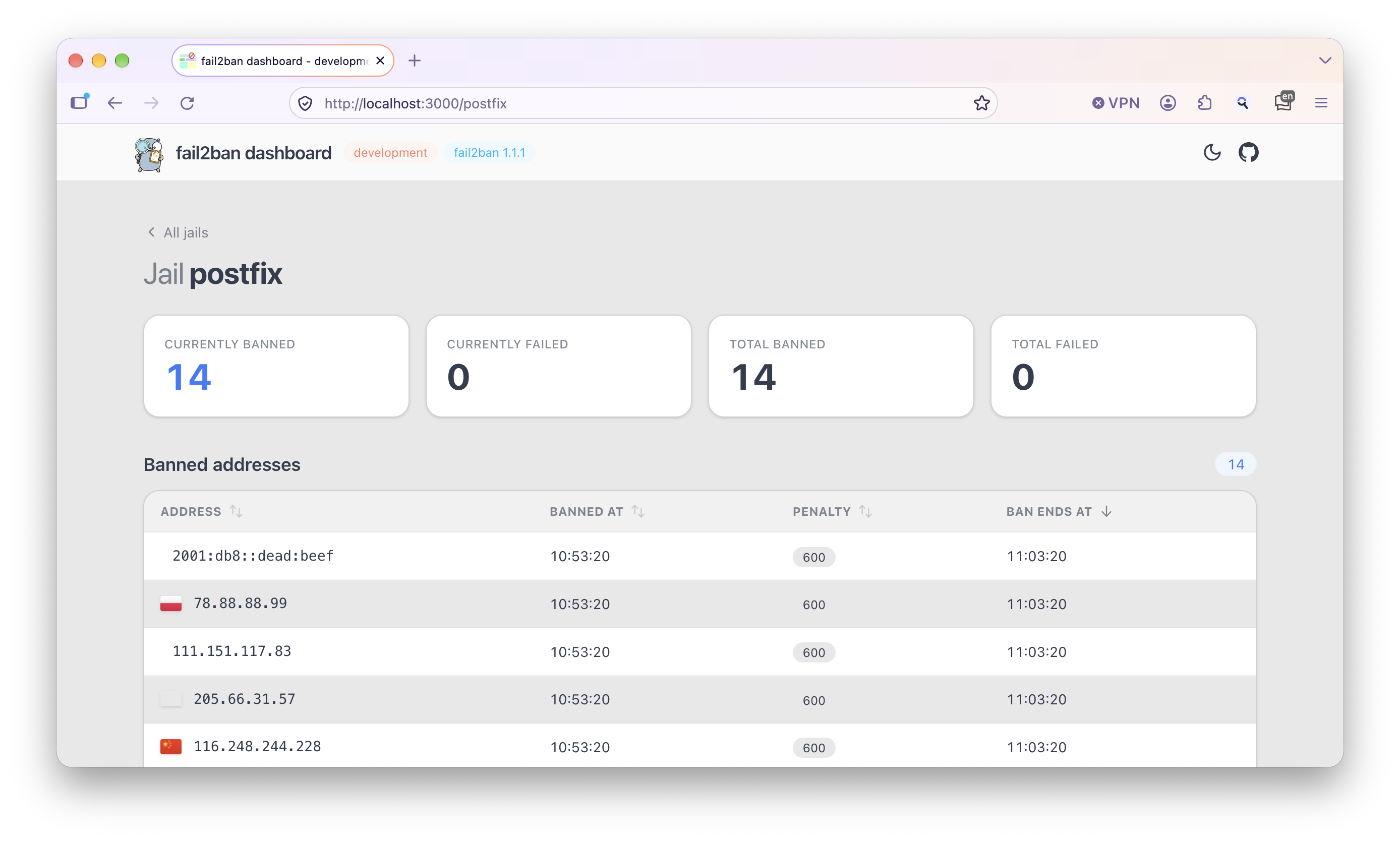

Jail detail view listing banned addresses with country information — Jail detail with banned addresses

Quick start

Docker

The quickest way to run the dashboard. The fail2ban socket is mounted read-only into the container:

docker run --user=root \
  -v /var/run/fail2ban/fail2ban.sock:/var/run/fail2ban/fail2ban.sock:ro \
  -p 3000:3000 \
  ghcr.io/webishdev/fail2ban-dashboard:latest

The root user is necessary because the fail2ban socket is only accessible to root by default. Instead of latest you can pin a version such as v0.11.2.

Standalone binary

Download a release for your platform from the releases page, then run:

sudo ./fail2ban-dashboard

Open http://127.0.0.1:3000/ in your browser.

Compatibility

Tested with these fail2ban versions:

0.11.10.11.21.0.11.0.21.1.01.1.1

For any other version, start with --skip-version-check, otherwise the application refuses to start.

But there is no guarantee, that an unsupported version will work.

Command line

Usage:
  fail2ban-dashboard [flags]
  fail2ban-dashboard [command]

Available Commands:
  completion  Generate the autocompletion script for the specified shell
  help        Help about any command
  serve       Start the fail2ban dashboard server (default)
  version     Print the version number and git hash

Options

Every option can be set as a command line flag, an environment variable or a config file entry.

Flag	Environment variable	Description	Default
`-a, --address`	`F2BD_ADDRESS`	Address to serve the dashboard on	`127.0.0.1:3000`
`--base-path`	`F2BD_BASE_PATH`	Base path of the application	`/`
`-c, --cache-dir`	`F2BD_CACHE_DIR`	Directory to cache GeoIP data	working directory
`--log-level`	`F2BD_LOG_LEVEL`	trace, debug, info, warn, error	`info`
`-m, --metrics`	`F2BD_METRICS`	Enable the Prometheus metrics endpoint	`false`
`--metrics-address`	`F2BD_METRICS_ADDRESS`	Address to serve metrics on	`127.0.0.1:9100`
`--refresh-seconds`	`F2BD_REFRESH_SECONDS`	fail2ban data refresh interval (10–600)	`30`
`--scheduled-geoip-download`	`F2BD_SCHEDULED_GEOIP_DOWNLOAD`	Keep the GeoIP cache updated even when the dashboard is not accessed	`true`
`--skip-version-check`	`F2BD_SKIP_VERSION_CHECK`	Skip the fail2ban version check	`false`
`-s, --socket`	`F2BD_SOCKET`	Path of the fail2ban socket	`/var/run/fail2ban/fail2ban.sock`
`--trust-proxy-headers`	`F2BD_TRUST_PROXY_HEADERS`	Trust proxy headers like `X-Forwarded-For`	`false`

Basic authentication

Enable basic auth with --auth-user and/or --auth-password.

Only --auth-user given: a password is generated and printed to the logs.
Only --auth-password given: the user is named admin.

Flag	Environment variable	Description
`--auth-user`	`F2BD_AUTH_USER`	Username for basic auth
`--auth-password`	`F2BD_AUTH_PASSWORD`	Password for basic auth

OAuth2

Log in through any OAuth2 / OpenID Connect provider such as Keycloak. All options without a default are required.

Flag	Environment variable	Description	Default
`--oauth2-client-id`	`F2BD_OAUTH2_CLIENT_ID`	Client identifier	–
`--oauth2-auth-url`	`F2BD_OAUTH2_AUTH_URL`	Authorization URL	–
`--oauth2-token-url`	`F2BD_OAUTH2_TOKEN_URL`	Token URL	–
`--oauth2-redirect-url`	`F2BD_OAUTH2_REDIRECT_URL`	Public URL of the dashboard	–
`--oauth2-timeout-minutes`	`F2BD_OAUTH2_TIMEOUT_MINUTES`	Session timeout in minutes	`30`

The redirect URL is the address users reach the dashboard on: usually http://127.0.0.1:3000, or e.g. https://fail2ban.example.com behind a reverse proxy.

Example with a local Keycloak at http://localhost:8080 and a demo realm:

./fail2ban-dashboard serve \
  --oauth2-client-id mysecretclient \
  --oauth2-auth-url http://localhost:8080/realms/demo/protocol/openid-connect/auth \
  --oauth2-token-url http://localhost:8080/realms/demo/protocol/openid-connect/token \
  --oauth2-redirect-url http://localhost:3000

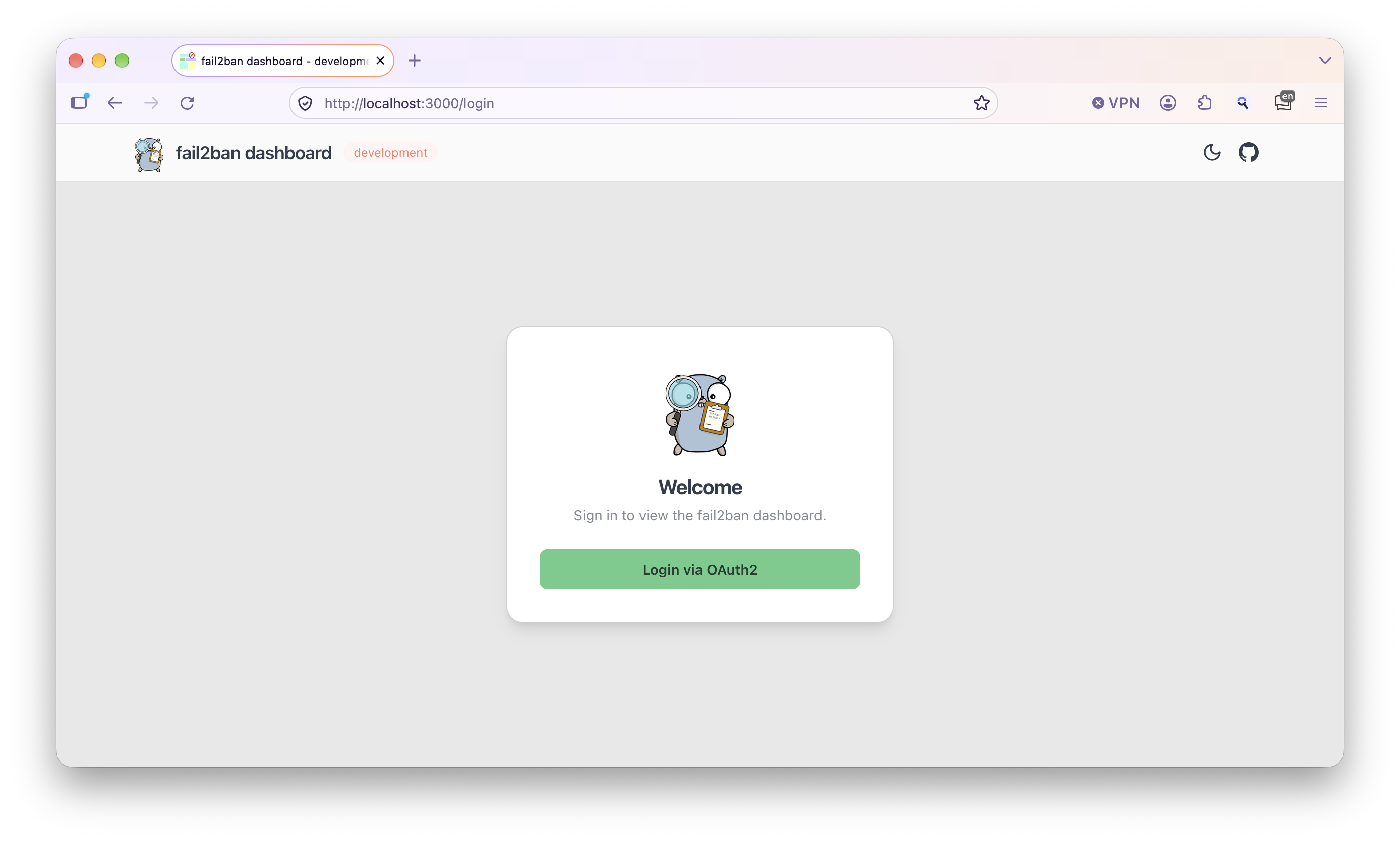

OAuth2 login screen of fail2ban-dashboard

Config file

Any format supported by viper works (TOML, YAML, JSON, …). The file is looked up in:

the current working directory
~/.config/fail2ban-dashboard/
/etc/fail2ban-dashboard/

Keys match the flag names. For example /etc/fail2ban-dashboard/config.toml:

address   = "127.0.0.1:4000"
socket    = "/var/run/fail2ban/fail2ban.sock"
log-level = "info"
metrics   = true

Metrics

Start with -m and metrics are served at http://127.0.0.1:9100/metrics. Change the address with --metrics-address.

Metric	Labels	Description
`f2b_banned_total`	–	Total number of banned addresses
`f2b_jail_count`	–	Number of jails
`f2b_jail_banned_current`	`jail`	Currently banned IPs per jail
`f2b_jail_banned_total`	`jail`	Total banned IPs per jail
`f2b_jail_failed_current`	`jail`	Currently failed IPs per jail
`f2b_jail_failed_total`	`jail`	Total failed IPs per jail
`fail2ban_dashboard_info`	`version`, `fail2ban_version`	Build information

# HELP f2b_jail_banned_current Amount of banned IPs currently in jail
# TYPE f2b_jail_banned_current gauge
f2b_jail_banned_current{jail="postfix"} 13
f2b_jail_banned_current{jail="sshd"} 33

Building from source

Requires the Go version from go.mod and make.

make build-all                      # Linux amd64 + arm64
make build-intel VERSION=v1.0.0     # Linux amd64 with version
make build GOOS=darwin GOARCH=arm64 # any GOOS/GOARCH
make help                           # list all targets

See who fail2ban is keeping out.
